Nov 2009:
I got an E-mail from Arthur Kimmels. He has come up with a DIY concept for a small shower heat exchanger, a drain water heat recovery (DWHR) unit. I really like the simplicity of this design. His mail speaks well for itself, so here it is:
Hei Svein,
With interest I read your blog about miljødusj http://urge4lessenergy.blogspot.com/2008_11_01_archive.html. I had been walking around with a similar idea of building a heat exchanger for the sh

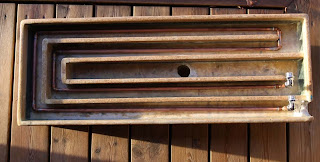

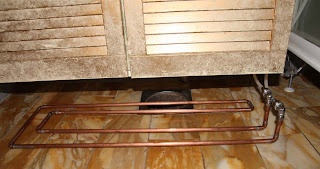

ower (before I read about miljodusj, but inspired by some products on the Dutch market), and after some months of thinking and building I installed it today. Attached you will find some pictures of the unit. It is built of wood, coated with fiber glass and polyester. It measures 85x32x12cm. The water channels have an inclination of approximately 1cm/m. The heat exchanger is built of ca. 4m copper, 12mm diameter and soldered together. It works as 'counterflow'. A disadvantage of this setup is the pressure drop/flow
reduction due to the long PEX/copper/PEX length (ca. 8m), but I measured this to be within acceptable limits for my setup. The measured temperature increase at a flowrate of ca. 10liter/min was

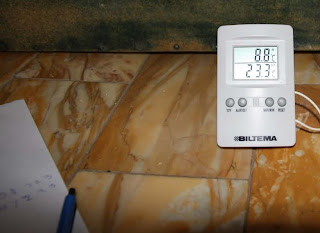

23.3(out) -8.8 (in) or 14.5degC. Total material cost was ca. NOK 1500, including PEX tubes to and from the unit. (The thermometer in the picture measures at the in and outlet, I removed the 'indoor' sensor from the housing and soldered it to some wire.)
ower (before I read about miljodusj, but inspired by some products on the Dutch market), and after some months of thinking and building I installed it today. Attached you will find some pictures of the unit. It is built of wood, coated with fiber glass and polyester. It measures 85x32x12cm. The water channels have an inclination of approximately 1cm/m. The heat exchanger is built of ca. 4m copper, 12mm diameter and soldered together. It works as 'counterflow'. A disadvantage of this setup is the pressure drop/flow
reduction due to the long PEX/copper/PEX length (ca. 8m), but I measured this to be within acceptable limits for my setup. The measured temperature increase at a flowrate of ca. 10liter/min was
23.3(out) -8.8 (in) or 14.5degC. Total material cost was ca. NOK 1500, including PEX tubes to and from the unit. (The thermometer in the picture measures at the in and outlet, I removed the 'indoor' sensor from the housing and soldered it to some wire.)
Feel free to add to your 'blog'.
Kind regards, Arthur Kimmels
----------------------------------------------------
Summary in Norwegian: Arthur har laget en enkel varmeveksler for dusj. Avløpsvannet fra dusjen brukes til å forvarme kaldtvannet som kommer inn i dusjen. Temperatur økningen på kaldtvannet er målt til 14.5 C. Det medfører at man bruker mindre varmtvann og dermed sparer energi. Spillvarme gjenvinning i praksis.
